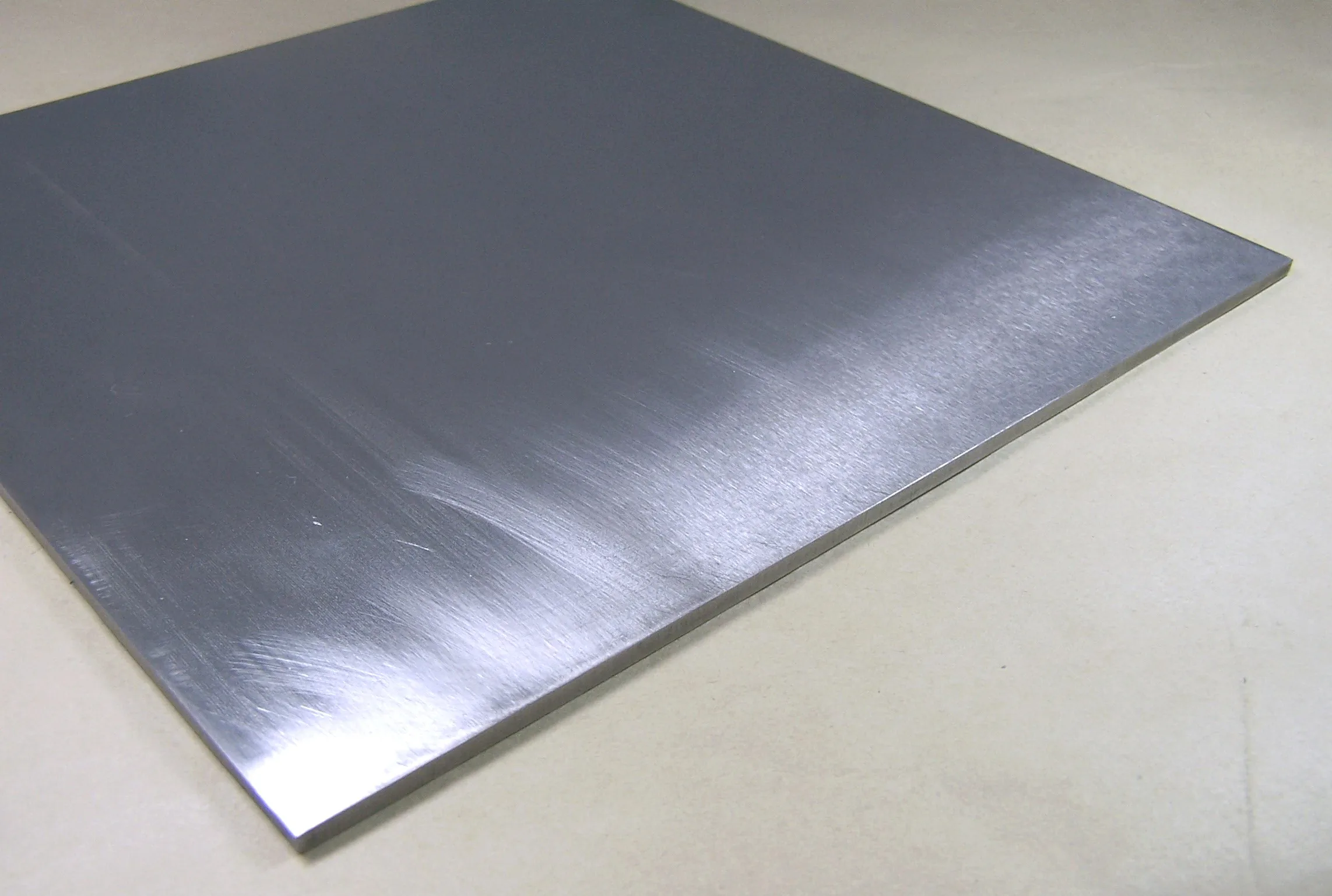

Molybdenum Metal Sheet | Mo ≥99.95% | ASTM B386 Standard

Overview
Our molybdenum sheets are manufactured from premium-grade powder metallurgy billets, precision hot-rolled and annealed to deliver exceptional mechanical properties and surface integrity. Designed for extreme environments, they combine ultra-high melting point (2,623°C), low thermal expansion, and superior creep resistance.

Key Specifications

• Purity: ≥99.95% (Mo content)

• Thickness: 0.1mm – 50mm (custom tolerances: ±5%)

• Width: Up to 600mm

• Surface: Mill finish, polished (Ra ≤0.8μm), or etched

• Density: 10.2 g/cm³

• Tensile Strength: 500–700 MPa (annealed)

Performance Advantages
✅ Extreme Temperature Stability: Maintains structural integrity from -150°C to 2,000°C
✅ Corrosion Resistance: Resists acids, molten metals, and oxidizing atmospheres
✅ Thermal Management: Low CTE (4.8×10⁻⁶/K) & high thermal conductivity (138 W/m·K)
✅ Vacuum Compatibility: Ultra-low outgassing for semiconductor/optical coatings

Applications

• Semiconductor: PVD sputtering targets, wafer boats, diffusion barriers

• Industrial Furnaces: Heating elements, radiation shields, sintering trays

• Aerospace: Rocket nozzles, turbine components

• Medical: X-ray anodes, radiation therapy parts

• Energy: Nuclear reactor cladding, solar cell substrates

Certifications & Processing

• Compliant with ASTM B386, AMS 7812

• Fully traceable with Material Test Certificates (MTC)

• Custom laser cutting, etching, and forming services available
