For more than 10 years, HuaYu has been a leading supplier of rare metals such as tantalum, niobium and its alloys. Relying on China’s abundant non-ferrous metal mine resources, we use exquisite metal processing technology to meet the needs of customers in the fields of chemical industry, optoelectronics, aviation and other fields for non-ferrous metal materials.
| Niobium alloy sheets, foils, and strip grades, standards, and applications | |||
| Products | grade | standard | apply |
| Nb1Zr | R04261 type | ASTM B393 standard | Electronics industry, superconductivity |
| niobium | R04210 | ASTM B393 standard | Electronics industry, superconducting sputtering, targets |
| Niobium and niobium alloy plate chemical composition | ||||
| element | 1 (reactor grade non-alloy niobium) R04200 |
2 Type (commercial grade unalloyed niobium) R04210 |
3 Type (reactor grade niobium-1% zirconium) R04251 |
4 Type (commercial grade niobium-1% zirconium) R04261 |
| Maximum weight % (unless otherwise stated) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| zirconium | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Cyanide | 0.1 | 0.3 | 0.1 | 0.5 |
| iron | 0.005 | 0.01 | 0.005 | 0.01 |
| Four | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| nickel | 0.005 | 0.005 | 0.005 | 0.005 |
| mo | 0.010 | 0.020 | 0.010 | 0.050 |
| high frequency | 0.02 | 0.02 | 0.02 | 0.02 |
| titanium | 0.02 | 0.03 | 0.02 | 0.03 |
| Mechanical properties of niobium and niobium alloy plates | ||||
| grade | ultimate tensile strength, min，psi（MPa） |
yield strength (0.2 % offset), min， psi （MPa） |
Elongation (1 in.) (25.4 mm) Gauge length, min, % |
|
| 0.010 inches or larger | Less than 0.010 in. | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
| Niobium & Niobium Alloy Sheet, Strip & Foil Size & Tolerance (mm) | ||||||
| thickness | Thickness tolerances | width | width tolerance |
length | length tolerance |
|
| Level 1 | Level 2 | |||||
| 0.025 – 0.1 | ± 0.005 | ± 0.008 | 50 – 150 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| 0.1 – 0.2 | ± 0.015 | ± 0.02 | 50 – 240 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| > 0.2 – 0.3 | ± 0.02 | ± 0.03 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.3 – 0.5 | ± 0.03 | ± 0.04 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.5 – 0.8 | ± 0.04 | ± 0.06 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.8 – 1.0 | ± 0.06 | ± 0.08 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 1.0 – 1.5 | ± 0.08 | ± 0.12 | 50 – 650 | ± 3.0 | 100 – 6 000 | ± 4.0 |
| > 1.5 – 2.0 | ± 0.12 | ± 0.16 | 50 – 650 | ± 3.0 | 100 – 4 000 | ± 4.0 |
| > 2.0 – 3.0 | ± 0.16 | ± 0.18 | 50 – 650 | ± 5.0 | 100 – 4 000 | ± 5.0 |
| > 3.0 – 4.0 | ± 0.18 | ± 0.20 | 50 – 650 | ± 5.0 | 100 – 3000 | ± 5.0 |
| > 4.0 – 6.0 | ± 0.20 | ± 0.24 | 50 – 650 | ± 5.0 | 100 – 2000 | ± 5.0 |
| The tolerances can be adjusted according to the customer’s requirements. | ||||||

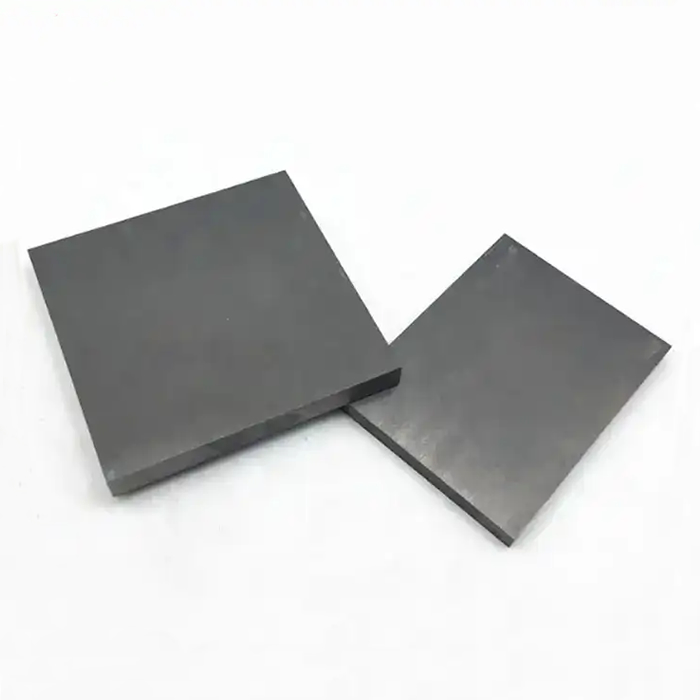

Niobium sheet and niobium plate applications
Niobium sheetsand plates are used in industrial, electric light sources, heating and insulation, and electric vacuum equipment. High purityNiobium sheetsIt has higher requirements for purity and uniformity, and can be used as a cavity material for superconducting linear colliders.Niobium platesThe most demanded materials are in steel companies, where materials are mainly used in cold-rolled pickling and soaking tanks, jet pumps and their system fittings.
