For more than 10 years, Hoau has been a leading supplier of rare metals such as tantalum, niobium and its alloys. Relying on China’s abundant non-ferrous metal mine resources, it brings exquisite metal processing technology to meet customers’ requirements for non-ferrous metal materials in the fields of chemical industry, optoelectronics, aviation and other fields.
| Niobium alloy sheets, foils, and strip grades, standards, and applications | |||
| Products | grade | standard | apply |
| NB1Zr(NB1Ruthenium) | R04261 type | ASTM B393 standard | Electronics industry, Superconductivity |
| niobium | R04210 | ASTM B393 standard | Electronics industry, Superconducting sputtering, Targets |
| Niobium and niobium alloy sheet chemical composition | ||||
| element | Type 1 (Reactor grade unalloyed niobium) R04200 | Type 2 (Commercial Grade Unalloyed Niobium) R04210 | 3 Type (reactor grade niobium-1% zirconium) R04251 | Type 4 (Commercial Grade Niobium-1% Zirconium) R04261 |
| Maximum weight % (unless otherwise stated) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| zirconium | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| iron | 0.005 | 0.01 | 0.005 | 0.01 |
| Four | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| nickel | 0.005 | 0.005 | 0.005 | 0.005 |
| mo | 0.010 | 0.020 | 0.010 | 0.050 |
| high frequency | 0.02 | 0.02 | 0.02 | 0.02 |
| titanium | 0.02 | 0.03 | 0.02 | 0.03 |
| Mechanical properties of niobium and niobium alloy plates | ||||
| grade | ultimate tensile strength, min，psi（MPa） | yield strength (0.2 % offset), min， psi （MPa） | Elongation is 1 inch. (25.4mm) Gage Length, Min, % | |
| 0.010 inches or larger | Less than 0.010 inches | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
| Niobium & Niobium Alloy Sheet & Strip & Foil Size & Tolerance (mm) | ||||||
| thickness | Thickness tolerances | width | width tolerance | length | length tolerance | |
| Year 1 | Year 2 | |||||
| 0.025 – 0.1 | ± 0.005 | ± 0.008 | 50 – 150 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| 0.1 – 0.2 | ± 0.015 | ± 0.02 | 50 – 240 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| > 0.2 – 0.3 | ± 0.02 | ± 0.03 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.3 – 0.5 | ± 0.03 | ± 0.04 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.5 – 0.8 | ± 0.04 | ± 0.06 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.8 – 1.0 | ± 0.06 | ± 0.08 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 1.0 – 1.5 | ± 0.08 | ± 0.12 | 50 – 650 | ± 3.0 | 100 – 6 000 | ± 4.0 |
| > 1.5 – 2.0 | ± 0.12 | ± 0.16 | 50 – 650 | ± 3.0 | 100 – 4 000 | ± 4.0 |
| > 2.0 – 3.0 | ± 0.16 | ± 0.18 | 50 – 650 | ± 5.0 | 100 – 4 000 | ± 5.0 |
| > 3.0 – 4.0 | ± 0.18 | ± 0.20 | 50 – 650 | ± 5.0 | 100 – 3000 | ± 5.0 |
| > 4.0 – 6.0 | ± 0.20 | ± 0.24 | 50 – 650 | ± 5.0 | 100 – 2000 | ± 5.0 |
| Tolerances can be adjusted according to customer requirements. | ||||||

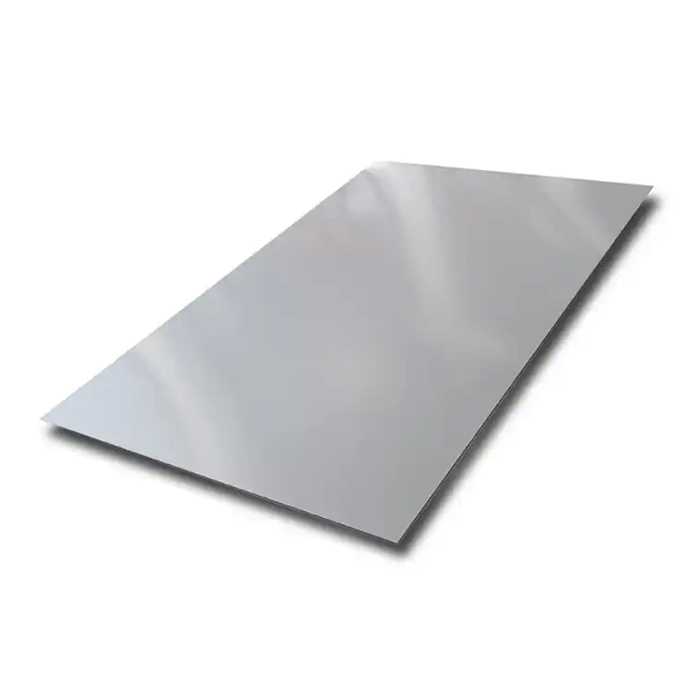

Niobium plate and niobium plate applications
Niobium sheetsTimber and plates are used in industrial, electric light sources, heating and thermal insulation electric vacuum equipment. High purityNiobium sheetsIt has higher requirements for purity and uniformity, and can be used as a cavity material for superconducting linear colliders.Niobium platesThe largest demand is for iron and steel enterprises, and the materials are mainly used for cold-rolled pickling tanks, jet pumps and their system pipe fittings.
