For more than 10 years, Hoau has been a leading supplier of rare metals such as tantalum, niobium and its alloys. Relying on China’s abundant non-ferrous metal mine resources, we use exquisite metal processing technology to meet the needs of customers in the fields of chemical industry, optoelectronics, aviation and other fields for non-ferrous metal materials.
| tantalum | ||
| Products | grade | ASTM Standards |
| Molybdenum sheets | Number: R05200 | ASTM B708 standard |
| Ta2.5W sheet | Number: R05252 | ASTM B708 standard |
| Ta10W sheet | Number: R05255 | ASTM B708 standard |
| Ta40Nb plate | No.: R05240 | ASTM B708 standard |
| Chemical requirements | |||||
| Content, Maximum, Weight % | |||||
| element | Electron Beam Casting/Vacuum Arc Casting R05200 Unalloyed Tantalum | Sintered R05400 unalloyed tantalum | Electron Beam Casting/Vacuum Arc Casting R05255 90% Tantalum 10% Tungsten | Electron Beam Casting/Vacuum Arc Casting R05252 97.5% Tantalum 2.5% Tungsten | Electron Beam Casting/Vacuum Arc Casting R05240 60% Tantalum 40% Niobium |
| C | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| O | 0.015 | 0.03 | 0.015 | 0.015 | 0.020 |
| N | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| iron | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| mo | 0.020 | 0.020 | 0.020 | 0.020 | 0.020 |
| niobium | 0.100 | 0.100 | 0.100 | 0.50 | 35.0 – 42.0 |
| nickel | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| Four | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| titanium | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| W | 0.05 | 0.05 | 9.0 – 11.0 | 2.0 – 3.5 | 0.050 |
| Cyanide | remainder | remainder | remainder | remainder | remainder |
| Plate and plate sizes for conventional tantalum and tantalum alloys | ||||
| Products | Dimensions (mm) | shape | ||
| thickness | width | length | ||
| Molybdenum sheets | 0.2 – 1.0 | 1000 | 100 – 6000 | table |
| Ta2.5W sheet | 0.2 – 1.0 | 1000 | 100 – 6000 | table |
| Ta10W sheet | 0.2 – 1.0 | 650 | 100 – 6000 | table |
| Ta40Nb plate | 0.2 – 1.0 | 650 | 100 – 6000 | table |
| Annealing conditions | ||||
| size | ultimate tensile strength, min， psi （MPa） | Yield strength, min, psi (MPa) (2 % offset) | Elongation, min, % (1-in. gauge length) | |
| Non-alloyed tantalum （R05200） （R05400） Sheets, sheets and strips | < 0.060 inches thick ≥ 0.060 in. thick | 30 000 （207） 25 000 （172） | 20 000 （138） 15 000 （103） | 20 30 |
| 90% Tantalum– 10% tungsten （R05255） | sheets and tapes timber plates | 70 000 （482） 70 000 （482） | 60 000 （414） 55 000 （379） | 15 20 |
| 97.5 % Tantalum – 2.5% tungsten （R05252） | < 0.125 inches thick ≥ 0.125 inches thick | 40 000 （276） 40 000 （276） | 30 000 （207） 22 000 （152） | 20 25 |
| 60% Tantalum– 40% niobium （R05240） | < 0.060 inches thick ≥ 0.060 in. thick | 35 000 35 000 | 20 000 （138） 15 000 （103） | 25 25 |

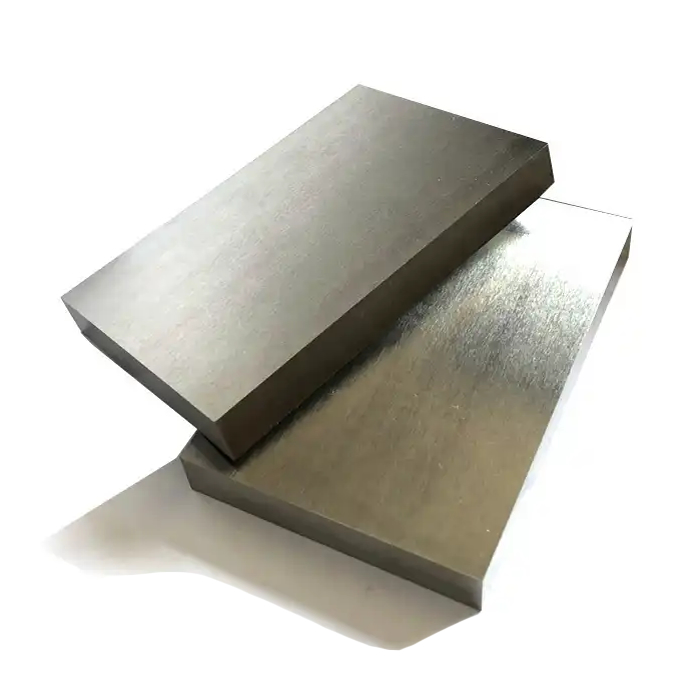

Tantalum plate and tantalum plate applications
Tantalum is a malleable metal that can be processed by cold forging, rolling, punching, drawing, spinning, extrusion, bending, and other methods. The thermal processing of tantalum should be carried out in an inert gas shielded state. PerformanceTantalum sheetsAfter forming an oxide film on the surface of tantalum strip, it can be processed into a round cup six times (without annealing in the process).
Tantalum andTantalum alloyThe plate is a high-temperature, corrosion-resistant material. The chemical stability is similar to that of glass, while the strength and stiffness are comparable to that of mild steel. The high-temperature thermal strength is second only to tungsten and tungsten alloy. With all these properties, tantalum andTantalum alloyPlates are excellent materials for chemical preservation and high-temperature furnaces.
Tantalum sheetsApplication in the medical field,Tantalum sheetsCan be used in artificial ears. For more than 10 years, Hoau has been a leading supplier of rare metals such as tantalum, niobium and its alloys. Relying on China’s abundant non-ferrous metal mine resources, we use exquisite metal processing technology to meet the needs of customers in the fields of chemical industry, optoelectronics, aviation and other fields for non-ferrous metal materials.
